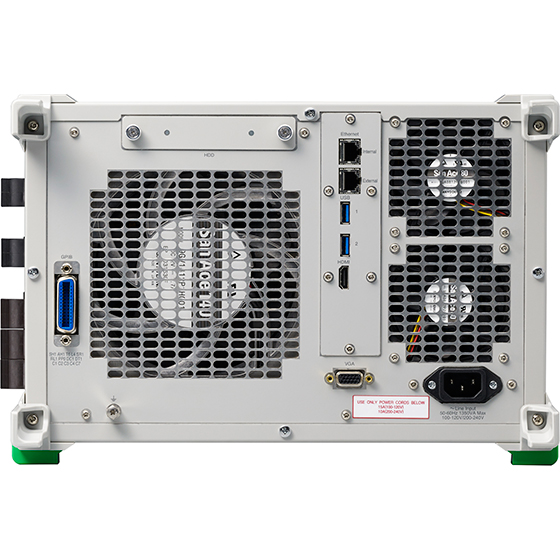

MP1900A Anritsu Sinyal Kalite Analizörü

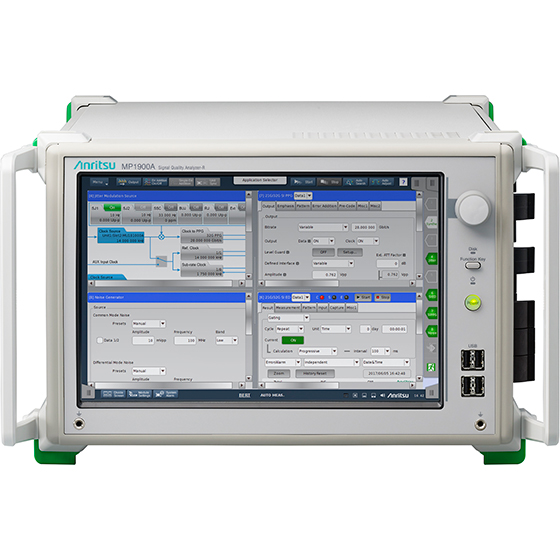

MP1900A Anritsu Sinyal Kalite Analizörü - Görsel 2

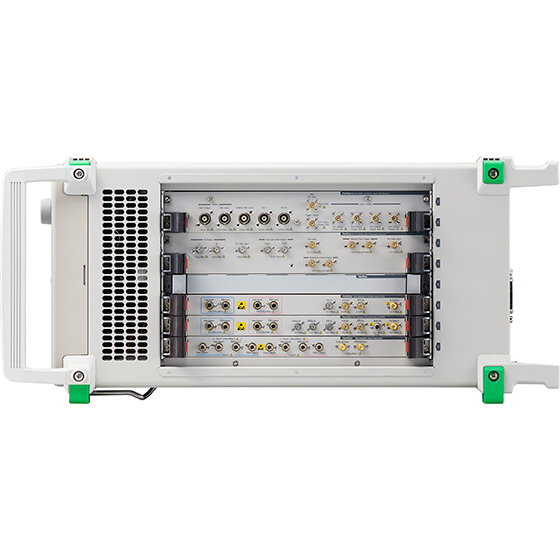

MP1900A Anritsu Sinyal Kalite Analizörü - Görsel 3

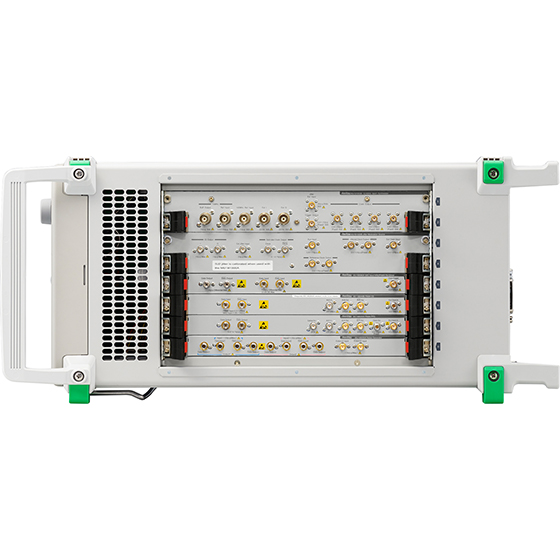

MP1900A Anritsu Sinyal Kalite Analizörü - Görsel 4

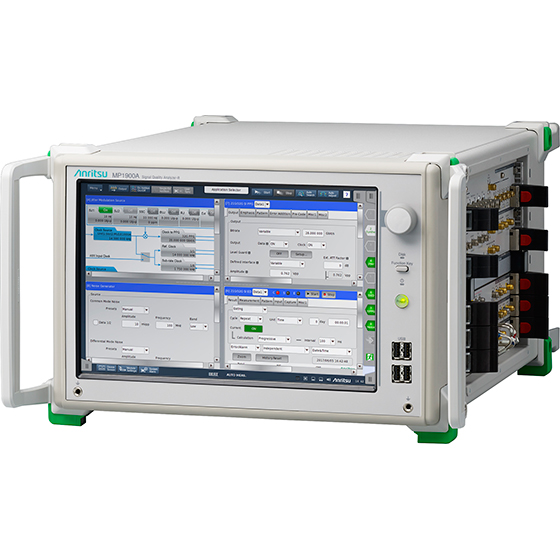

MP1900A Anritsu Sinyal Kalite Analizörü - Görsel 5
MP1900A Anritsu Sinyal Kalite Analizörü - Görsel 6

MP1900A Anritsu Sinyal Kalite Analizörü

Teklif Al

MP1900A serisi, NRZ ve PAM4 gibi yüksek hızlı ağ arabirimlerinin yanı sıra PCI Express/USB veri yolu arabirimlerinin fiziksel katman ölçümlerini tek bir cihazda gerçekleştiren, 8 yuvalı modüler, yüksek performanslı bir BERT cihazıdır

Stok kodu (SKU): MP1900A

Teknik Döküman

Özellikler

PAM4 Test Çözümü
  • 512 Gbit/s max. transmission capacity
  • PAM4 PPG/ED (MU196020A/MU196040A)
    • Baud rate of 2.4 to 64.2 Gbaud*1
    • Multichannel Scalability 4ch PAM4/NRZ
    • High-speed Tr/Tf of 8.5 ps (20 to 80%)
    • Low Intrinsic Jitter output of random Jitter 170 fs rms (typ.)
    • Low noise and low distortion high-quality data output
    • 4Tap Emphasis (20-dB Range)
    • ISI adjustment function
    • FEC pattern generation
    • Stressed margin BER < E-12*2
    • Built-in Clock Recovery
    • PAM4 pattern editor and symbol error measurement
  • Jitter Addition, Jitter Tolerance measurement functions (SJ/RJ/BUJ/SSC)
  • Voltage Noise Addition function (Common/Differential/White Noise)
  • Jitter Tolerance measurement using DUT BER counter function
*1: Future support for ED (Over 32.1G)
*2: At PAM4 Stressed waveform input refer to CEI
PAM4 Solution (Max. 64 Gbaud at 1CH)
PAM4 Solution (Max. 64 Gbaud at 1CH)

Yüksek Hızlı Seri BUS Test Çözümü (PCI Express, USB, Thunderbolt)
  • 512 Gbit/s max. transmission capacity, one main frame expandable to 16ch (filling 8 slots with 32 Gbit/s 2 ch PPG)
  • All-in-one support for both high-speed Ethernet and PCI Express interface tests
  • New wideband 32 Gbit/s SI PPG/ED (MU195020A/MU195040A)
    • Bit rate of 2.4 Gbit/s to 32.1 Gbit/s
    • NRZ/PAM4 Support
    • 10Tap Emphasis
    • Variable ISI function
    • Multi-band CTLE (8 Gbit/s, 16 Gbit/s, 28 Gbit/s bandwidths)
    • Low Intrinsic Jitter output of random Jitter 115 fs rms (typ.)
    • High-sensitivity Data input of 15 mV typ. (EYE Height)
    • 1ch/2ch Selection
  • PCI Express Link Training, LTSSM analysis (using MU195020A/MU195040A/MX183000A-PL021)
  • USB Express Link Training, LTSSM analysis (using MU195020A/MU195040A/MX183000A-PL022)
  • Jitter Addition, Jitter Tolerance measurement functions (SJ/RJ/BUJ/SSC, using MU181500B/MX183000A-PL001)
  • Voltage Noise Addition function (Common/Differential/White Noise, using MU195020A/MU195050A)
NRZ Solution (Max. 32 Gbit/s at 1ch)
NRZ Solution (Max. 32 Gbit/s at 1ch)

Açıklama

Yenilikler

Yapay zeka ve makine öğreniminin yaygın olarak benimsenmesinin yanı sıra, akıllı telefonlar ve mobil cihazlardan gelen veri iletişiminin hacmindeki artış, 200 GbE, 400 GbE, 800 GbE ve hatta 1,6 TbE’yi destekleyen veri merkezi ağ arayüzlerinin yaygınlaşmasını tetikliyor; bu arada daha yüksek kapasite ve daha hızlı iletişim talepleri de artmaya devam ediyor.

Ayrıca, iletişim için kullanılan PCI Express (PCIe) 7 veri yolu arabirimi, 128 GT/s’nin yanı sıra daha hızlı çoklu kanallı iletişimi de destekleyecektir. Dahası, DDR5 ve CXL gibi yeni nesil bellek teknolojilerinin piyasaya sürülmesi, verimli yapay zeka ve Büyük Veri işlemeyi teşvik etmektedir. Bu teknolojiler, veri merkezi ve uç bilgi işlem gücünü artırarak yeni nesil uygulamaların geliştirilmesi için bir temel oluşturmaktadır.

Çeşitli ölçüm uygulamalarına uygun esnek özelleştirme için 8 yuvalı modüler konfigürasyona sahip, hepsi bir arada, çok kanallı Signal Quality Analyzer-R MP1900A yüksek performanslı BERT serisi, yüksek hızlı ağların, PCIe, USB ve diğer arayüzlerin PHY katmanı ölçümlerini destekler. Bu özellikleriyle MP1900A serisi, giderek hızlanan cihazların sinyal bütünlüğü analizi için ideal çözümdür.

Hedef Uygulamalar

  • 100 GbE/200 GbE/400 GbE/800 GbE,
  • CEI-25G/28G/56G/112G,
  • InfiniBand EDR/HDR,
  • Fibre Channel,
  • PCI Express Gen1/2/3/4/5/6,
  • Thunderbolt 3/4/5,
  • USB3.2/4 v1/4 v2,
  • SAS-3/-4,
  • DP1.4/2.0/2.1,
  • Optical module,
  • SERDES,
  • AOC,
  • High-speed,
  • USB Type-C

Anritsu MP1900A BERT for Ethernet and PCI Express of data-center

Öne Çıkan İçerikler

200G/400G için PAM4 BERT

PCIe®, USB and Thunderbolt™ için High Speed Serial Bus BERT

Teknik Özellikler

Tipik Teknik Özellikler

  • Signal Quality Analyzer-R MP1900A
Item Teknik Özellikler
LCD 12.1-inch, WXGA 1280 x 800
Remote Interface GPIB, LAN
Module Slots 8
External Peripheral I/F USB x6, VGA x1, HDMI x1
OS Windows Embedded Standard 7
Power 100V(ac) to 120V(ac)/200V(ac) to 240 V(ac)
50 Hz to 60 Hz
Power Consumption 1350 VA max.
Dimensions/Mass 340 (W) x 222.5 (H) x 451 (D) mm/20 kg max. (excluding modules)
  • Gürültü Üreticisi  MU195050A
Item Teknik Özellikler
No. of Channels 2
Insertion Loss -3 dB
CMI 0.1 GHz to 1 GHz/1 GHz to 6 GHz
DMI 2 GHz to 10 GHz
White Noise 10 MHz to 10 GHz
Crest Factor >5
  • PAM4 PPG MU196020A
Item Teknik Özellikler
Operation Rate (PAM4/NRZ) 2.4 Gbaud to 32.1/58.2/64.2 Gbaud (option selection)
No. of Channels 1
Output Amplitude 70 mVp- to 800 mVp-p (Single-end)
140 mVp- to 1600 mVp-p (Differential)
Offset -2 V to +3.3 V
Emphasis 4 Tap, -20 to +20 dB
Channel Emulator Generates waveform with insertion loss and simulates waveform with corrected insertion loss
Set by loading S-Parameter file (S2 P, S4 P)
ISI Simulates ISI generation waveform
Set using loss (–8.00 to 8.00 dB) at CEI-specified Nyquist frequency
Used in combination with channel board, such as J1800A/J1758A (optional accessories parts), or Noise Module MU195050A
Independently Variable PAM4 3 Eye 20 to 50% (PAM4 Amplitude 0/3 level = 100%)
PAM4 Pattern SSPRQ, PRBS13Q, PRBS31Q, RS-FEC, etc.
PAM4 Pattern Error Addition MSB Error, LSB Error, LSB&MSB Error, RS-FEC Symbol Error
Tr/Tf (20 to 80%) 8.5 ps (typ., NRZ)
Random Jitter 170 fs rms (typ., NRZ)
I/O Connector V (f)
  • PAM4 ED MU196040B  NEW
Item Teknik Özellikler
Operation Rates (PAM/NRZ) 2.4 to either 32.1 Gbaud, or 58.2 (PAM4)/64.2 (NRZ) Gbaud (option selection)
No. of Channels 1
Input Amplitude NRZ: ≤32.1G: 0.05 to 1.0 Vp-p; >32.1G: 0.1 to 1.0 Vp-p
PAM4: ≤32.1G: 0.3 to 1.0 Vp-p; >32.1G: 0.4 to 1.0 Vp-p
Input Sensitivity (Eye Height) NRZ: 19 mV @ 26.5625 Gbaud; 21 mV @ 53.125 Gbaud
PAM4: 23 mV @ 26.5625 Gbaud; 36 mV @ 53.125 Gbaud
Clock Recovery (Option) 2.4 to 32.1 Gbaud; 51 to 58.2 Gbaud
Equalizer (Option) Low-frequency Equalizer (≤1 GHz, 2 dB typ.) + DFE (1.4 dB typ.)
PAM4 Patterns SSPRQ, PRBS13Q, PRBS31Q, etc.
PAM4 Counter MSB, LSB, Symbol 0 to 3 (Option)
Input Connector V (f)
  • 21G/32G bit/s SI PPG MU195020A
Item Teknik Özellikler
Operation Bit Rate (NRZ) 2.4 Gbit/s to 21 Gbit/s or 32.1 Gbit/s
No. of Channels 1 or 2
Output Amplitude 0.1 Vp-p to 1.3 Vp-p (Single-end)
0.2 Vp-p to 2.6 Vp-p (Differential)
Emphasis 10Tap
Channel Emulator Normal： Emulates Insertion Loss using S-parameters
Inverse： Performs De-Emphasis compensation for S-parameter Insertion Loss
S-Parameter file: S2P,S4P
ISI Emulates output for ISI using CEI-28G/25G Nyquist frequency loss setting
Supports loss control in combination with J1758A ISI Board accessory
Insertion Loss setting：1.5 to 25 dB, 0.01 dB step, Nyquist frequency

0 to 25 dB, 0.01 dB step, 1/2 Nyquist frequency
Tr/Tf (20% – 80%) 12 ps (typ.)
Random Jitter 115 fs rms (typ.)
PCIe and USB Link Training Supported（MX183000A-PL021/PL022/PL025）
Output Connector K (f)
  • 21G/32G bit/s SI ED MU195040A
Item Teknik Özellikler
Operation Bit Rate (NRZ) 2.4 Gbit/s to 21 Gbit/s or 32.1 Gbit/s
No. of Channels 1 or 2
Input Amplitude 0.05 Vp-p to 1.0 Vp-p (Single-End)
0.1 Vp-p to 2.0 Vp-p (Differential)
Input Sensitivity (Eye Height) 15 mV (Eye Height 28.1 Gbit/s)
30 mV/Eye（28.1 Gbaud, PRBS15, PAM4）
CTLE Peak Frequency 14, 8, 4 GHz
Gain 0 to –12 dB
Clock Recovery Yes, SSC support
PCIe and USB Link Training Supported（MX183000A-PL021/PL022/PL025）
Ouput Connector K (f)

MP1800A serisi modülleri MP1900A’da kullanılabilir. Daha fazla bilgi için seçim kılavuzuna bakınız.
